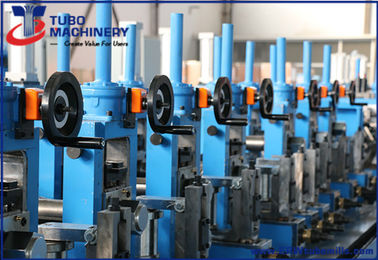

Large Image :  ERW 76mm

Product Details:

Contact Now
Detailed Product Description

I. The technical flow of the production line
{SteelTape}→Double-head un-coiler→Automatic Strip-head Cutter and welder→Accumulator→Forming section (Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) + De-burr frame→Cooling unit→Sizing unit and straightener→Flying saw under computer-control→Run-out table



II. Basic conditions:



1. Production Capacity
Round Pipe 25mm - 76.2mm
Square & Rectangular 20*20 - 60*60(40*80)mm
Wall Thickness 0.8 - 4.0mm (Round Pipe);
0.8 - 3.0mm(Square Pipe)
Speed Max.100mm
Pipe Length 4m – 12m
2. Steel Strip Specification
Material Low Carbon Steel, Q235, Q195
Coil I.D. 460 - 510MM
Coil O.D. Max. 1800mm
Strip Width 80mm – 240mm
Strip Thickness 0.8mm – 4.0mm
Max. Weight 3500kgs
3. Electricity
Dynamic power: 380V, 3 phases, 50Hz (Depending On Local)
Control Power: 220V, one phase, 50 Hz
4. Solid State High Frequency Welder: 250KW
5. Electric installed capacity: Appro. 500KW
6. Cooling Water
Reservoir for High Frequency equipment: 25m³, one set
Reservoir for circulating cooling water: 25m³, one set
7. Compressed Air
Pressure 0.5 MPA
Flow 0.8m3/hour
8. Line Speed: Max.100m/min
9. Size of Whole Line: 65m X 6m (Length X Width)



We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
For more information, please send us inquiry.
we are tube mill manufacturer and tube mill supplier ,you can know it.
