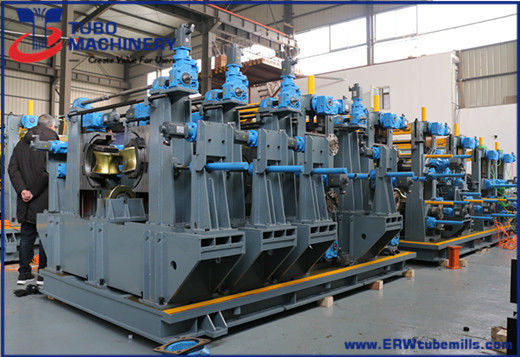

Large Image :  ERW 102mm

Product Details:

Contact Now
Detailed Product Description

I. The technical flow of the production line
{SteelTape} → Double-head un-coiler → Automatic Butt Shear & Welder →

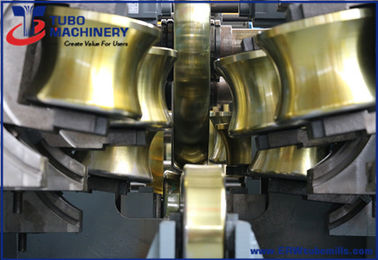

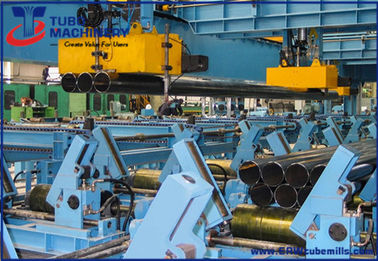

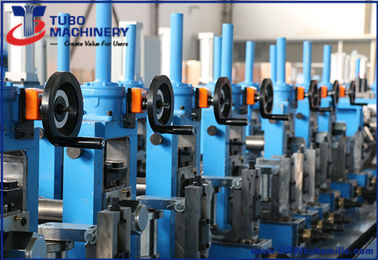

Spiral Accumulator → Forming section(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller)→Remove inner burr device →Cooling unit → Sizing Section and straightener → Cutting Saw → Run-out table



II. Basic conditions:

1. Production Capacity
Round Pipe 32mm - 102mm
Square & Rectangular 25*25 - 80*80(60*100)mm
Wall Thickness 0.8 - 3.0mm
Speed Max.90m/min
Pipe Length 6m – 12m
2.Steel Strip Specification
Material Low Carbon Steel,Q345, Q235, Q195
Coil I.D. 460 - 510MM
Coil O.D. Max. 1800mm
Strip Width 100mm – 320mm
Strip Thickness 0.8mm – 3.0mm
Max. Weight 3000kgs
3. Electricity
Dynamic power: 380V, 3 phases, 50Hz (Depending On Local)
Control Power: 220V, one phase, 50 Hz
4. Solid State High Frequency Welder: 200Kw
5. Electric installed capacity: Approx. 450KW
6. Cooling Water
Reservoir for High Frequency equipment: 25 m³, one set
Reservoir for circulating cooling water: 25 m³, one set
7. Compressed Air
Pressure 0.4MPA
Flow 0.8m3/hour
8. Line Speed: Max.90m/min
9. Size of Whole Line: 60m X 6m (Length X Width)



We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
