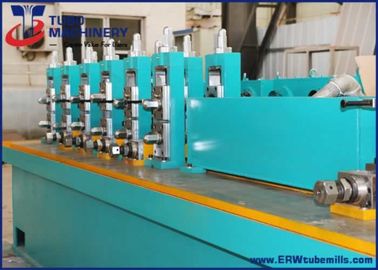

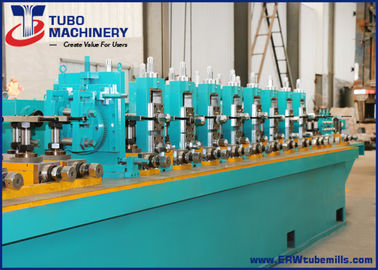

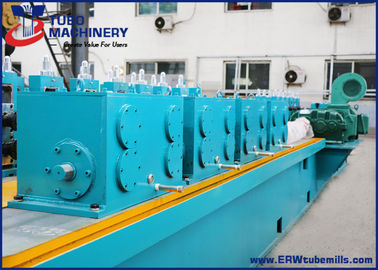

ERW 32mm

ERW 32mm
ERW 32mm ERW 32mm ERW 32mm ERW 32mm

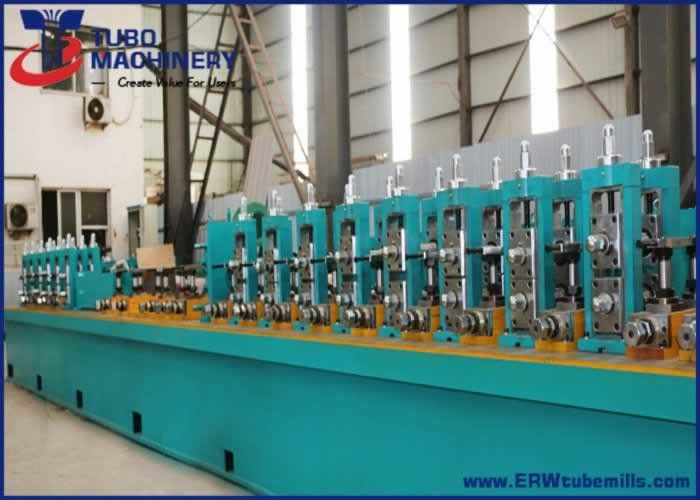

Large Image :  ERW 32mm

Product Details:

Detailed Product Description

I. The technical flow of the Production Line
Steel coil→→ Double-head un-coiler →→Automatic Strip head & end Cutter and welder→→Accumulator→→Forming section,
we are provide tube mill equipment,we can guarantee the quality of tube mill equipment.
(Flattening unit +Main driving unit +Forming unit +Guide unit +High frequency induction welding unit +squeeze roller) →→De-burr frame →→Cooling unit →→ Sizing unit and straightener →→Flying saw under computer-control →→ Run-out table



II. Basic Conditions:



1. Production Capacity
Round Pipe 8mm - 32mm
Square & Rectangular 8*8 - 25*25mm
Wall Thickness 0.5 - 2.0mm (Round Pipe);
0.5 - 1.5mm(Square Pipe)
Speed Max.120mm
Pipe Length 3m – 12m
2. Steel Strip Specification
Material Low Carbon Steel, Q235, Q195
Coil I.D. 460 - 510MM
Coil O.D. Max. 1500mm
Strip Width 26mm – 100mm
Strip Thickness 0.5mm – 2.0mm
Max. Weight 1500kgs
3. Electricity
Dynamic power: 380V, 3 phases, 50Hz (Depending On Local)
Control Power: 220V, one phase, 50 Hz
4. Electric installed capacity: Appro. 200KW
5. Cooling Water
Reservoir for High Frequency equipment: 15 m³, one set
Reservoir for circulating cooling water: 15 m³, one set
6. Compressed Air
Pressure 0.4MPA
Flow 0.5m3/hour
7. Line Speed: Max.120m/min
8. Size of Whole Line: 50m X 5m (Length X Width)



We always design and make each line according to each customer's specific requirements, so each customer can buy his own well-content line from us.
For more information, please send us inquiry.

we are tube mill manufacturer and tube mill supplier ,you can know it.
