300*300mm Milling Type Flying Cutting Saw

Detailed Product Description

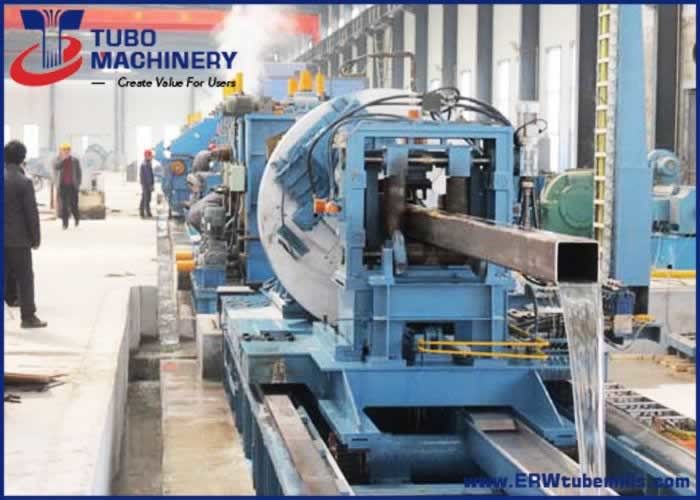

300*300mm Milling Type Flying Cutting Saw
Product Details:

1. Two blade rotation cold cutting
2. Auto control (Manual operation is ok)
3. LCD touch screen HM
4. High speed and precision
5. No burrs, save costs
6. Low failure rate, easy maintenance, long life application:round pipe,square pipe ,rectangle pipe, open cold bend steel
7. Material:Q235-345,J55,X42-80,N80



Details:
We developed the milling type flying cold saw by ourselves. It is a type of high precision cutting machine for big size diameter steel pipe. The machine catches the step with the word’s developing speed in the field.
The cutting machine adopts 2 blades cutting and 2 coordinate axes interlock controlling technology, which made no burrs, low noise and excellent cutting edge. The milling type flying cold saw is suitable for large diameter pipe cutting.



Model size(mm) Thickness(mm) length(m) precision(mm) speed(m/min)
CS-165 ф60-ф165 2.5-7.0 5-12 ≤±3 Max.50
CS-219 ф89-ф219 3.5-7.0 6-12 ≤±3 Max.40
CS-273 ф114-ф273 4.0-10.0 6-12 ≤±3 Max.40
CS-325 ф165-ф325 5.0-12.7 6-12 ≤±3 Max.35
CS-377 ф165-ф377 5.0-12.7 6-15 ≤±3 Max.35
CS-406 ф165-ф406 5.0-14.0 6-15 ≤±3 Max.35
CS-426 ф165-ф426 5.0-16.0 6-15 ≤±3 Max.35
CS-508 ф165-ф508 5.0-16.0 6-18 ≤±3 Max.35
CS-630 ф219-ф630 6.0-16.0 6-18 ≤±3 Max.30
CS-660 ф219-ф660 8.0-22.0 6-18 ≤±3 Max.30
